Description

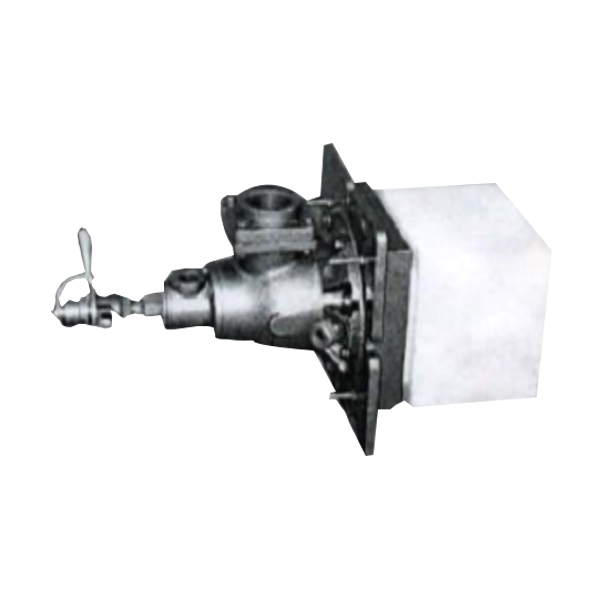

25422 EXCESS AIR OIL BURNERS are used on heat treatment, non-ferrous melting furnaces, kilns, ovens, air heaters, dryers and chemical process equipment. They are well suited where superior temperature uniformity is required (For higher temperature Service, use series 25425). These sealed – in burners are suitable for high speed diesel, Light Distillate oil and kerosene and are stable at correct ratio with up to 50% excess oil provided additional air for complete combustion is available in the furnace near the burner.
Capacity : 0.26 TO 3.35MBTU/HR
Sizes : 2, 3, 4, 5, 6, 7A, 7B, 8A
Fuel : LDO, HSD
Preheated Air : 320°C
